Services
01
Architectural Shopdrawings
General Arrangement Layout Drawings
Detailed Wall Setting Out Drawings
02
Structural Shopdrawings
Piling/Pilecap Drawings
Concrete Body Plan Drawings
Concrete Body Elevation/Section Drawings
03
MEP Combined Services Drawings & Single Services Drawings
Coordinated combined services drawings that show the cleared clash free routing for all services
04
Project Specific Custom Shopdrawings
Custom shop drawings based on collaboration with site engineers
01
Architectural Shopdrawings
General Arrangement
Layout Drawings
Provides insight into the design intention and other general overview.

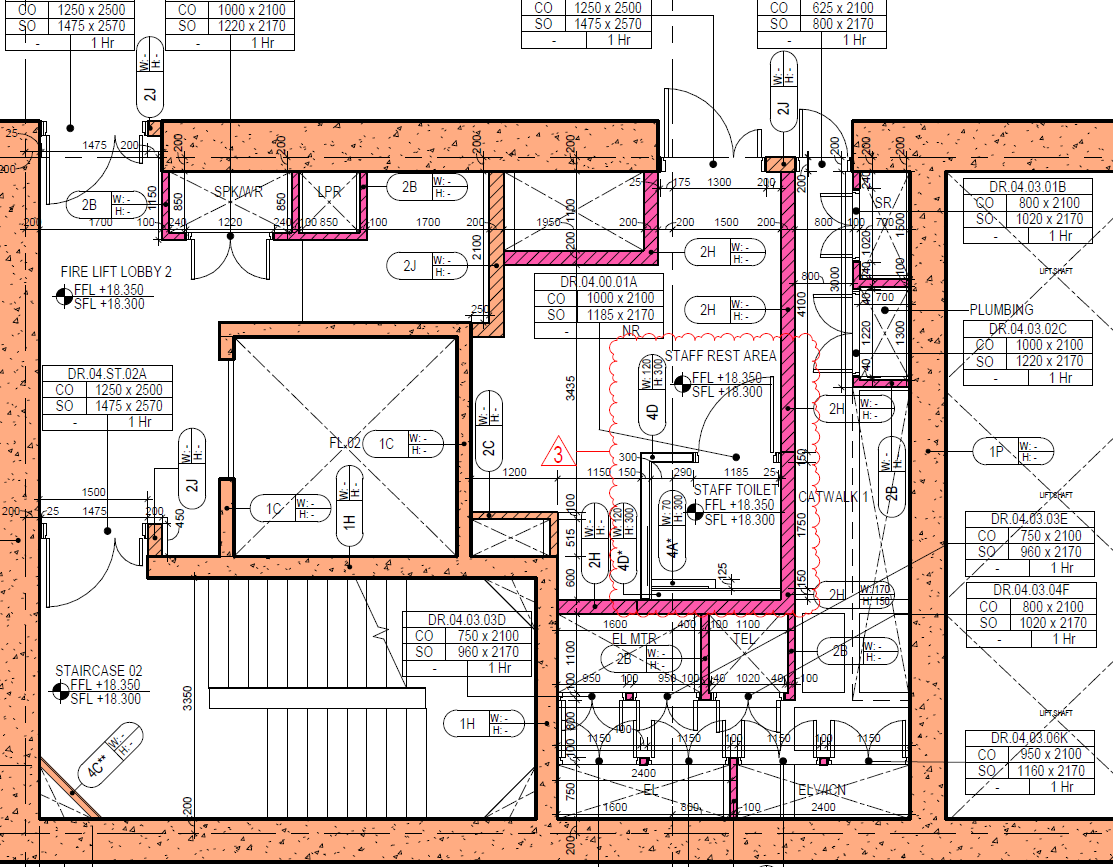

Detailed Wall Setting Out Drawings
Provides all essential dimensions to walls, door installation tolerances, basic waterproofing information and other relevant project specific information.

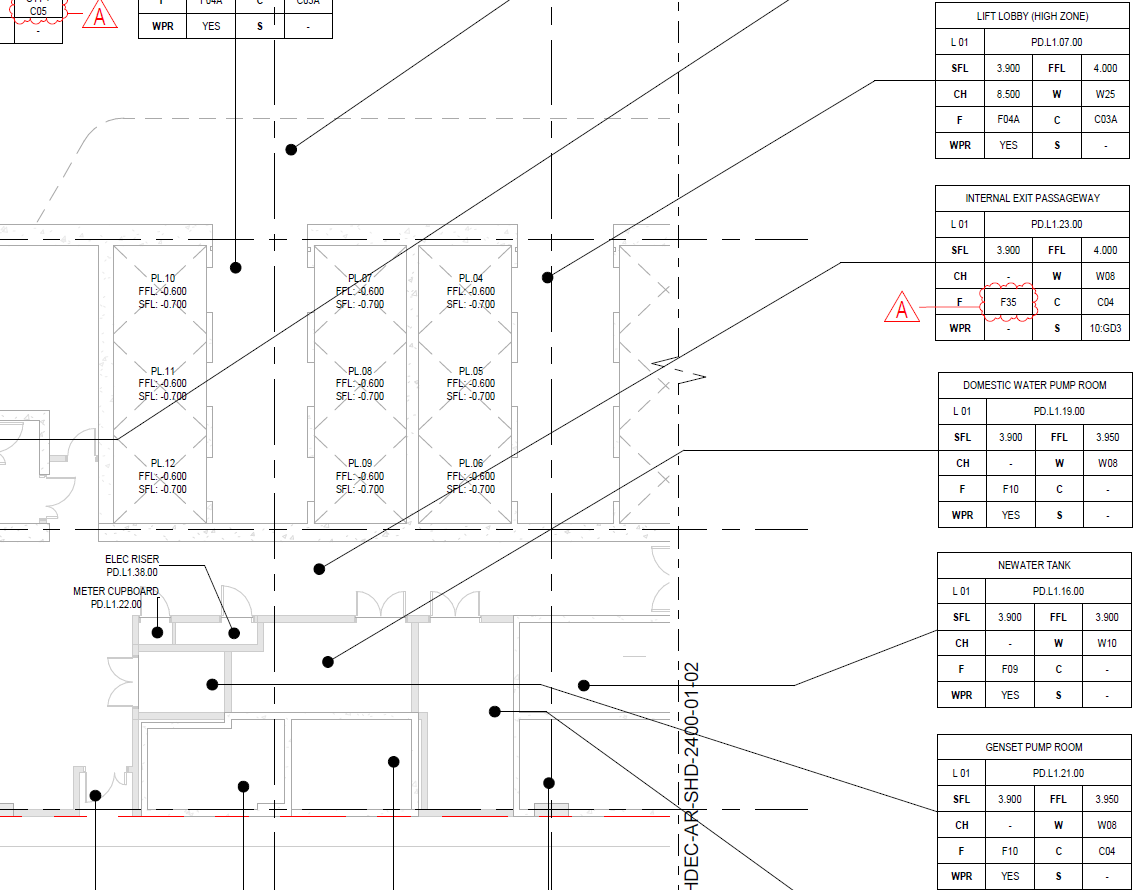

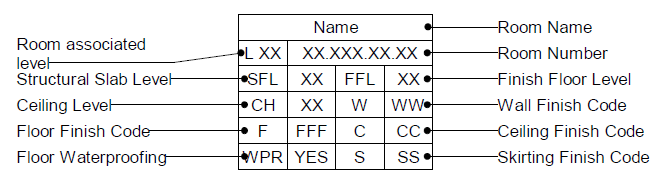

Room Finish Information Drawings
Provides details of all finishes for floors, walls and ceilings for each room with pre-defined finish codes.
Reflected Ceiling Plan Drawings
Provides details of ceiling panel installation including ceiling fixtures setting outs.

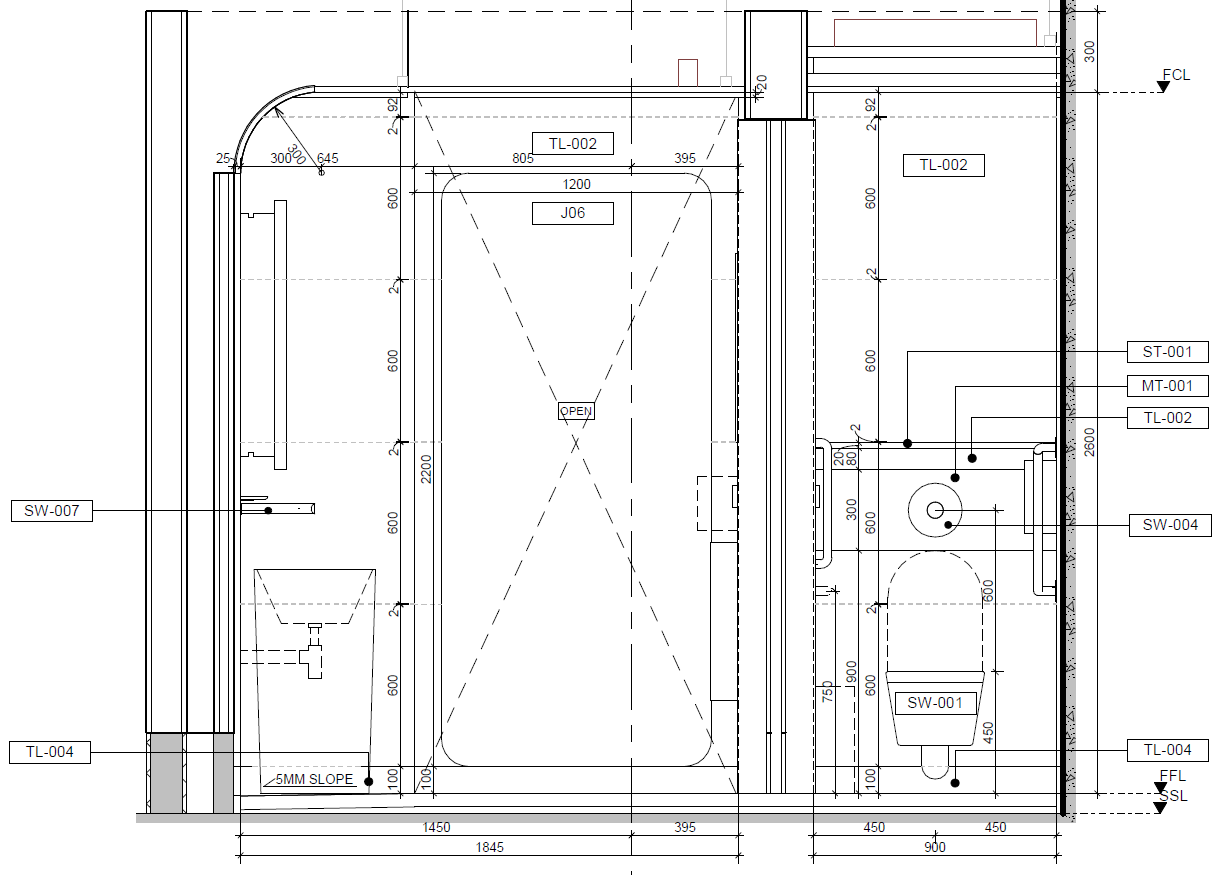

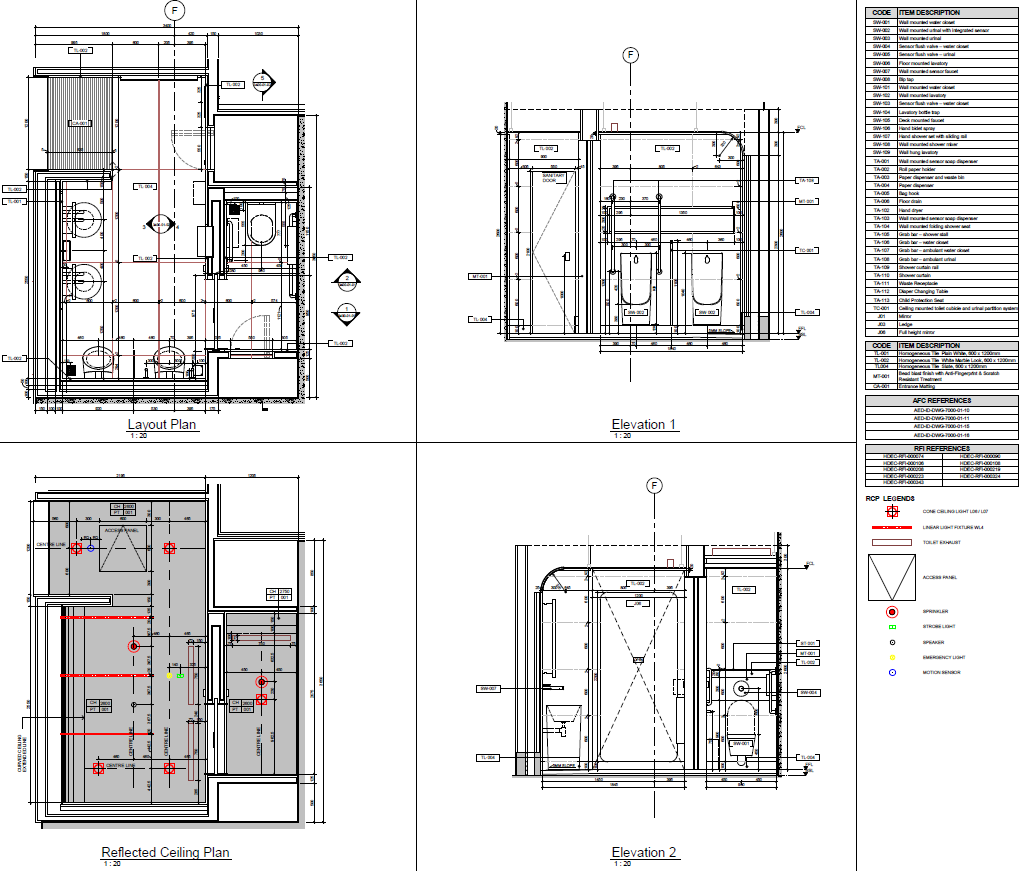

Unit/Room Detailed Interior Drawings
Provides detailed information with plans, sections & elevations for all unique rooms in a building.
02
Structural Shopdrawings

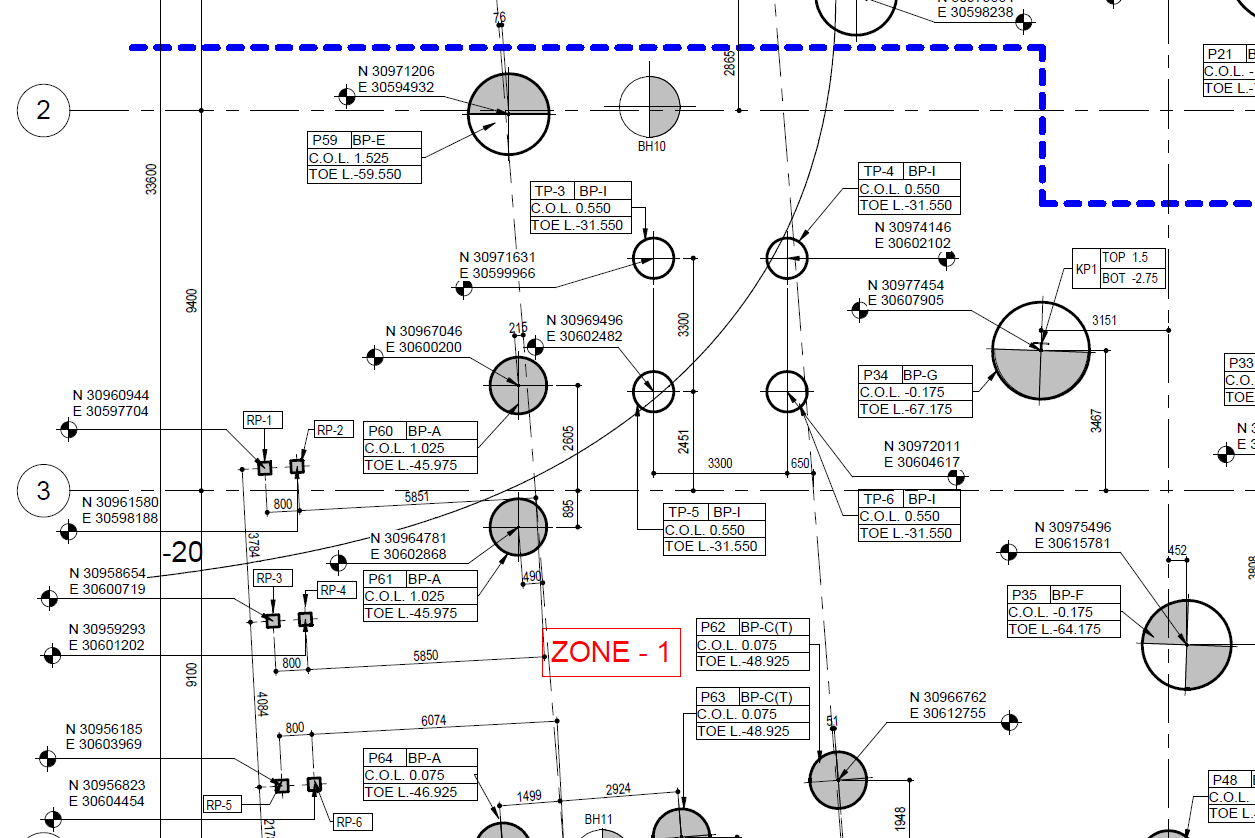

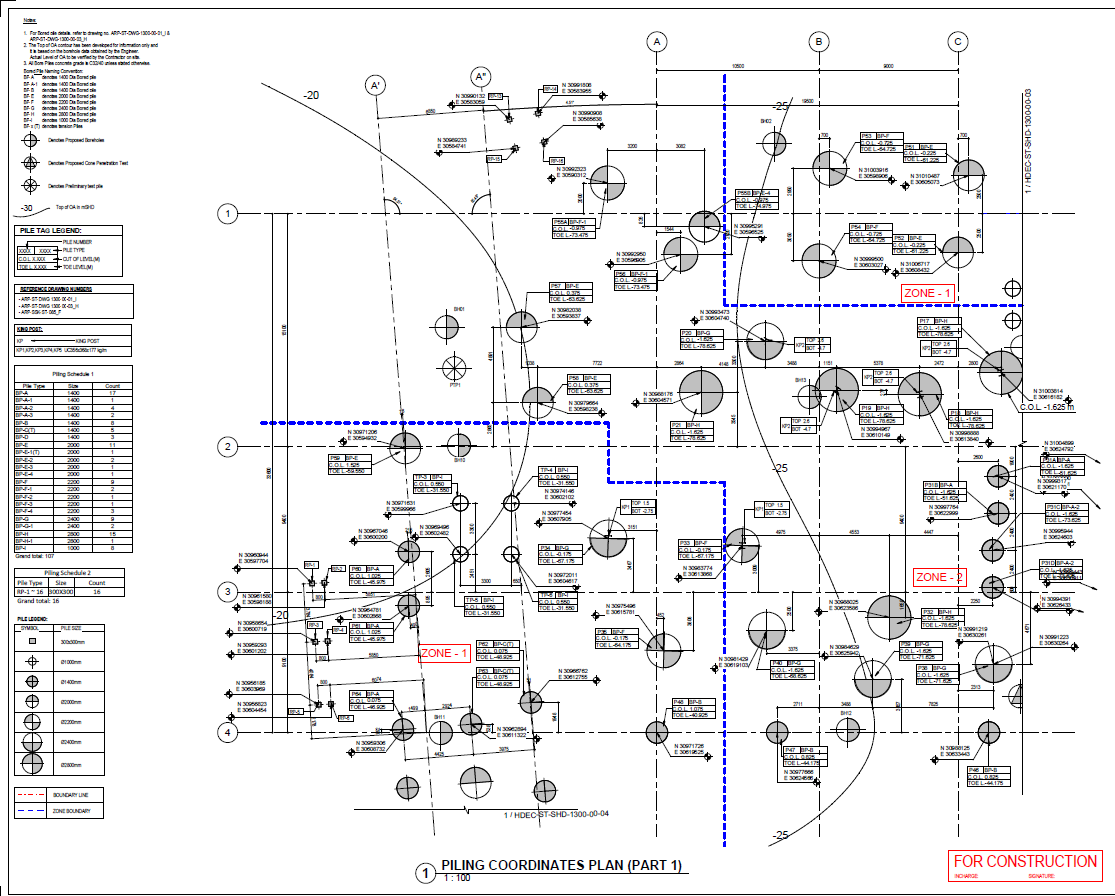

Piling / Pilecap Drawings
Provides information on piles/pilecap for construction. Includes concrete volumes, levels and other required details for the site work.

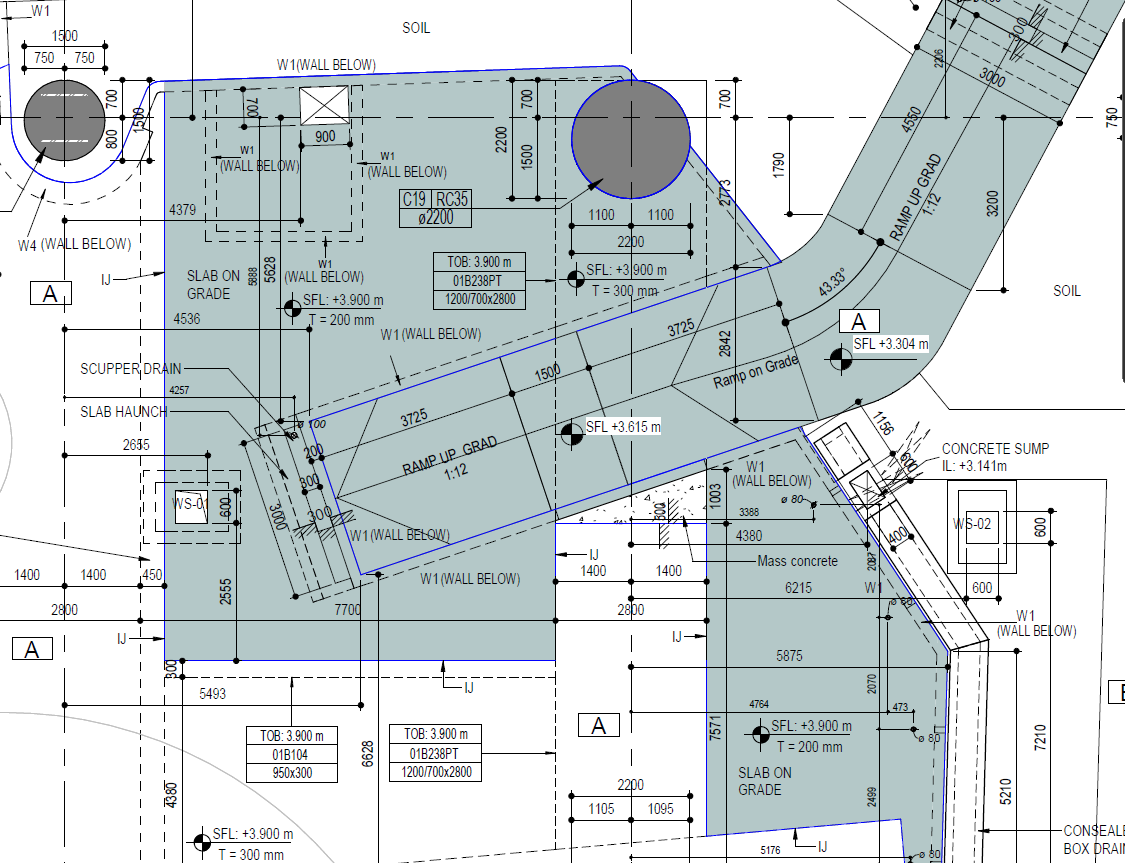

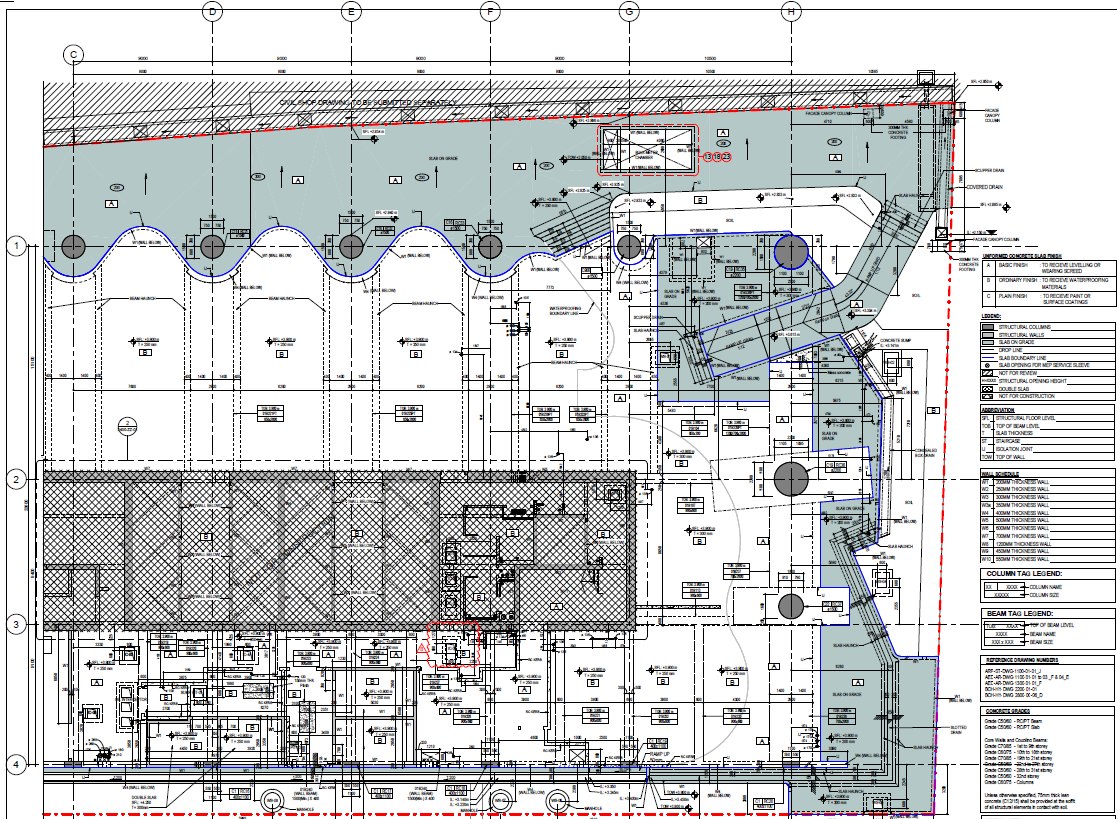

Concrete Body Plan Drawings
Provides the concrete body details with all coordinated structural openings for MEP, structural provisions for architectural installations and any other information required on site for ease of construction.
Concrete Body Elevation/Section Drawings
Provides the concrete body sections for any complex areas of the project to facilitate ease of construction.
03

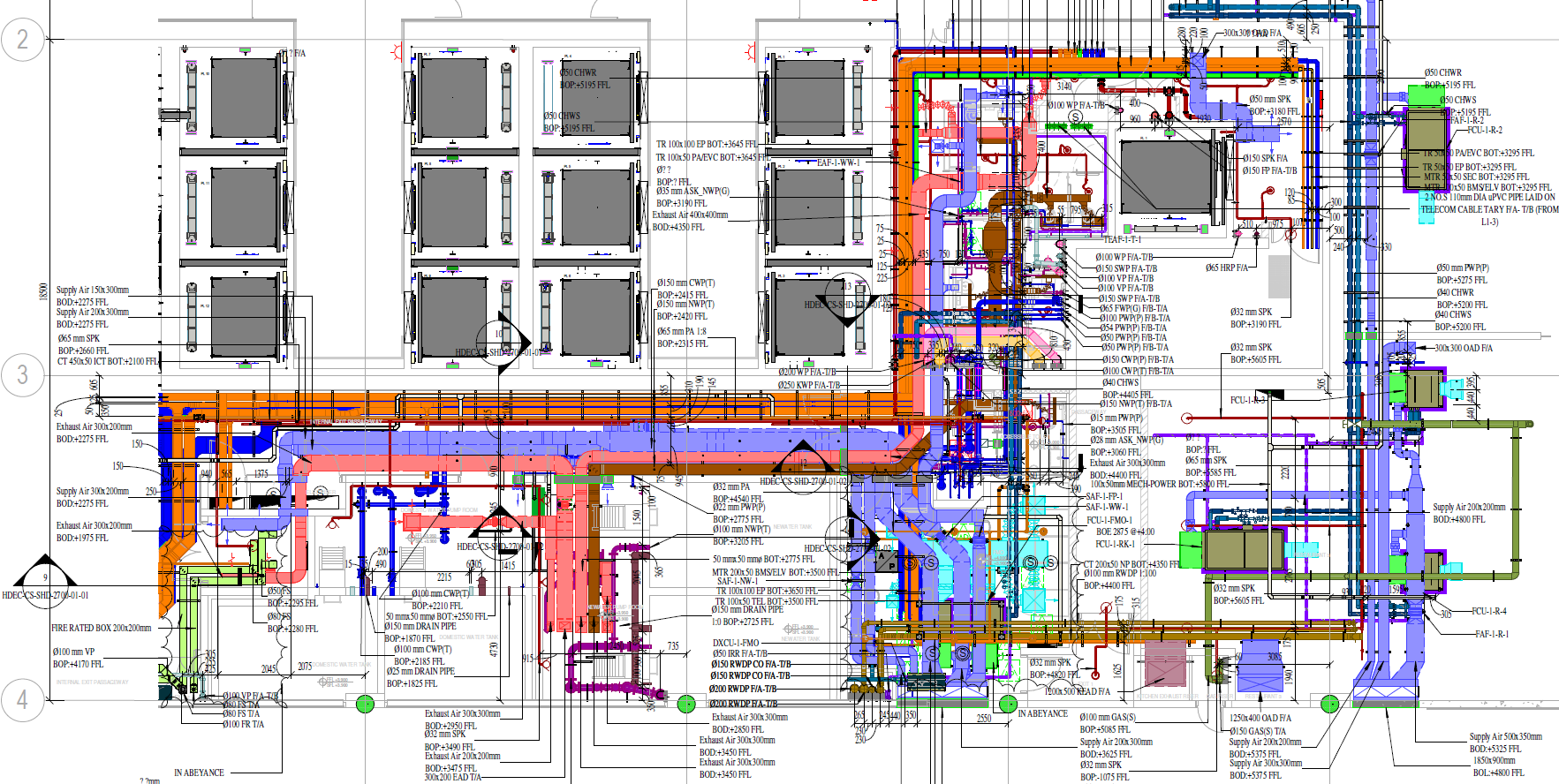

MEP Combined Services Drawings
& Single Services Drawings
Coordinated combined services drawings that show the cleared clash free routing for all services.
Based on the coordinated CSD drawings, individual services drawings will be generated to provide more details for each trade individually.
04
Project Specific Custom Shopdrawings
Custom shop drawings based on collaboration with site engineers to design and bring innovative construction solutions.
